EarthSense®
Insulation Monitoring for Railways
Without Earth Insulation Monitoring, floating IT systems are just a false sense of security for your personnel and system.
See it in action
Continuous Insulation Monitoring

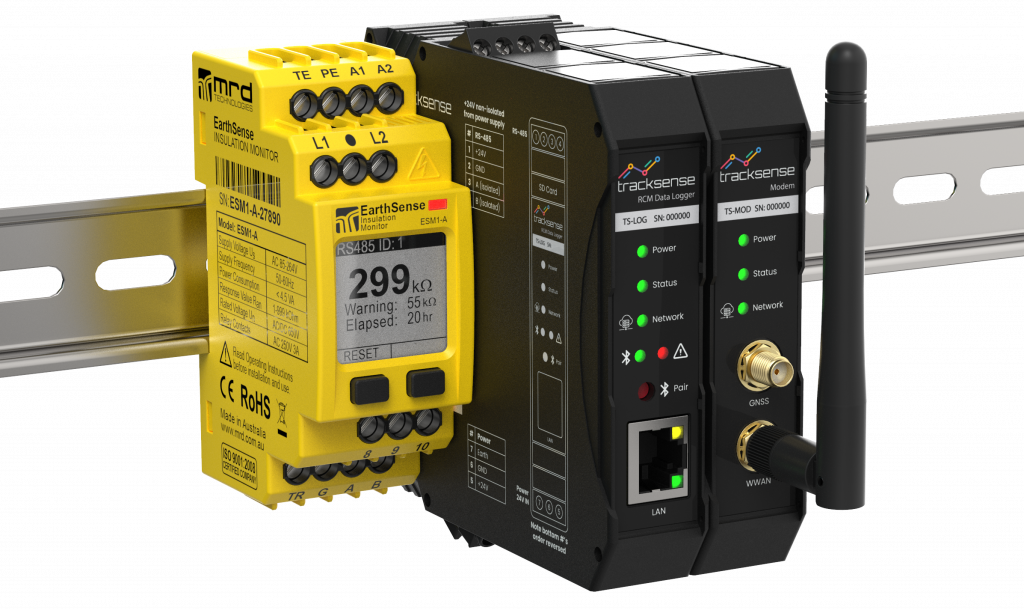

Remote Condition Monitoring System

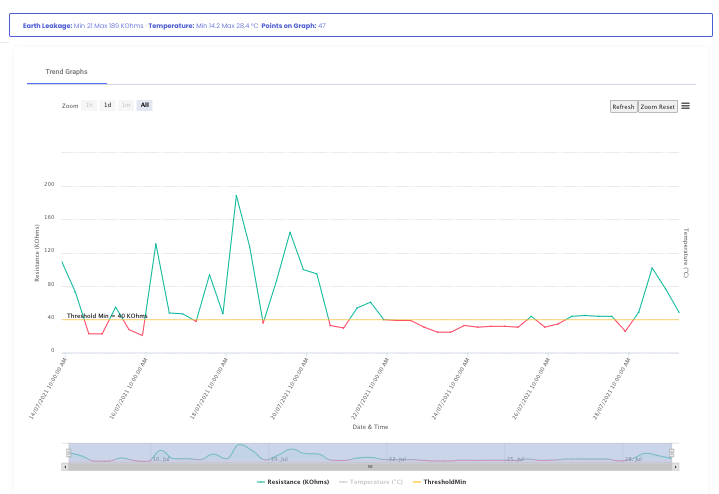

Predictive Maintenance & Alerts
Simple Installation & Operation
Compact Unit Size for Maximum Space Spaving
EarthSense 100% is designed and manufactured in Australia

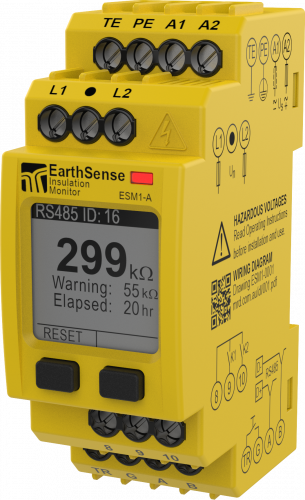

Designed to measure insulation resistance in unearthed IT systems
Despite all of the safety built into our electrical rail systems, failures can and do occur
By providing constant monitoring and instant notifications of threshold breaches, EarthSense® Insulation Monitor significantly reduces the likelihood of failure or accidents due to electrical ground faults.
EarthSense 3D Viewer
Click & Drag for 360 Degree View (Double-click for full screen mode
Avoid hazardous conditions
The Interlocking circuits in railway signaling are often supplied from battery or power supply sources in which neither of the poles are connected to earth
In the event of a single fault, there is no danger, however, two or more faults occurring at the same time could create a dangerous situation
It is vitally important to supervise the battery and power supplies continuously to prevent this from happening.
Cables that run in parallel with AC electrified railways are subjected to induced voltages. If a ground fault occurs in the cable, these voltages can disturb devices that are connected to both cables. When ground faults occur in both supply and return wires, yet another hazardous condition is created.
These faults can be detected reliably with EarthSense.
EarthSense® monitors and detects ground faults in electrical installations where high reliability of power supply is required
See it in action

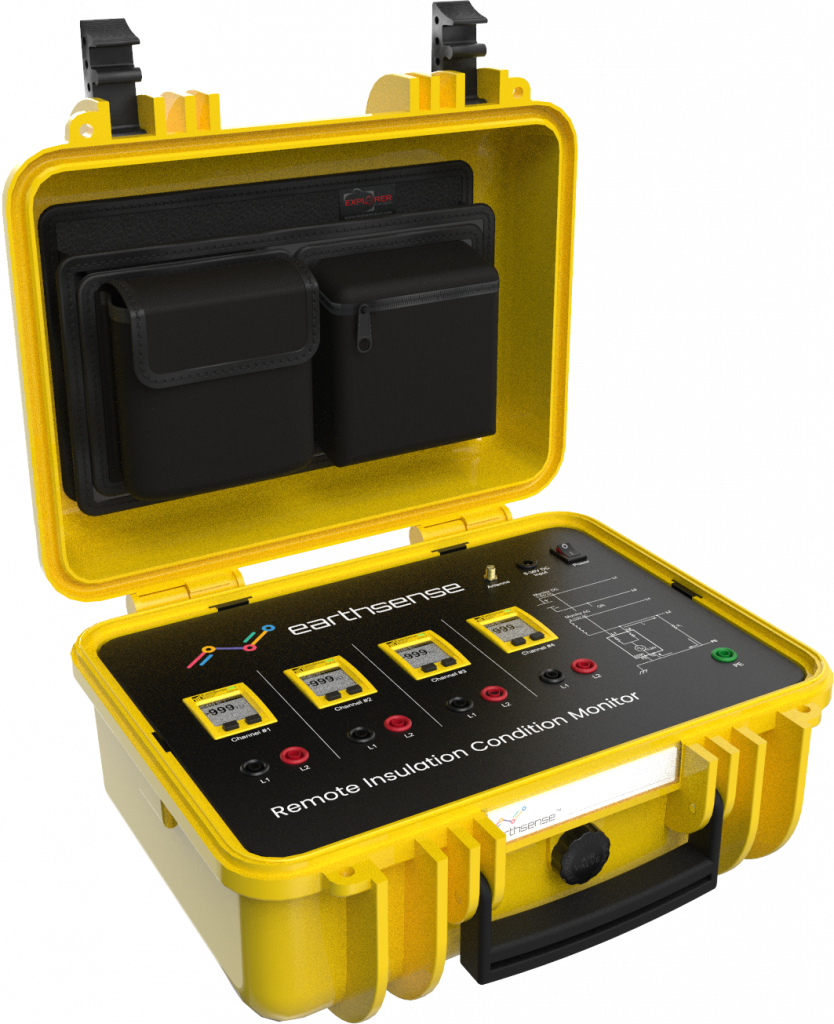

Looking for a portable Remote Insulation Condition Monitor?
Try EarthSense Portable
EarthSense Frequently Asked Questions
Yes, the EarthSense comes with a sunlight readable OLED display
Yes, EarthSense has Modbus RTU on RS485
Yes, EarthSense has remote test and reset functions
Flexible channels allow monitoring of either AC or DC busbars
Nominal supply voltage
- Option A 85 – 264V AC
- Option B 9.6 – 96V DC
Frequency range AC 50 – 60Hz
